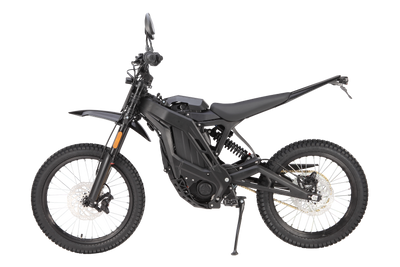

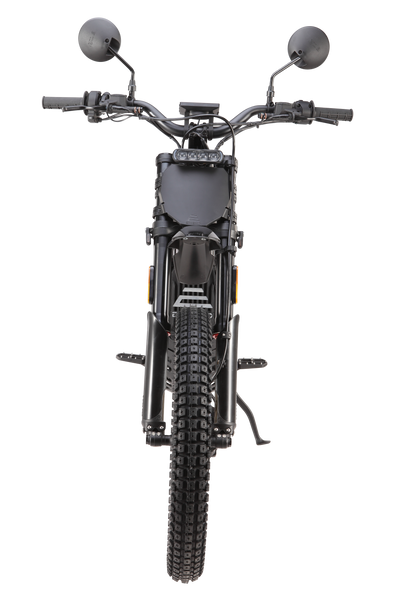

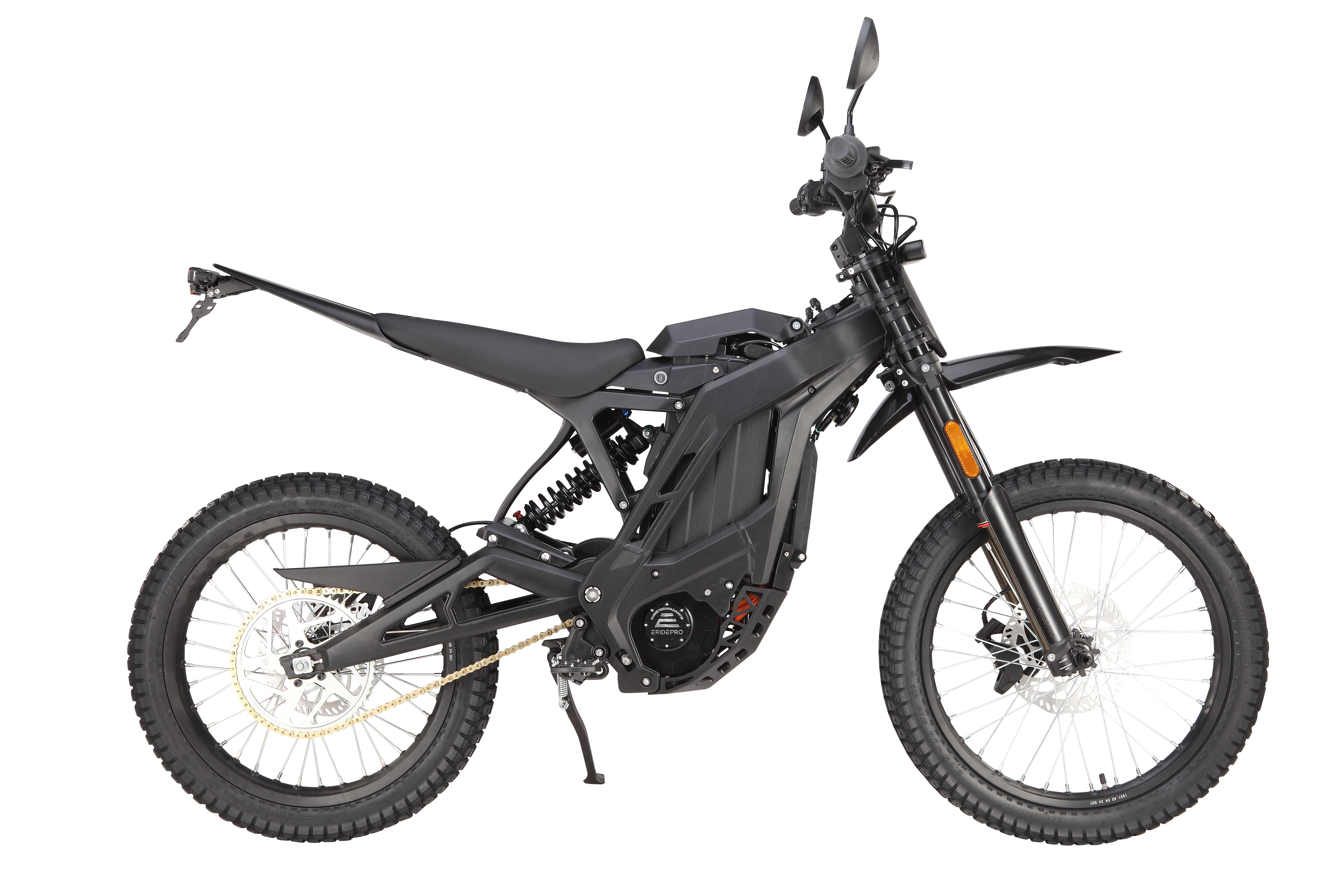

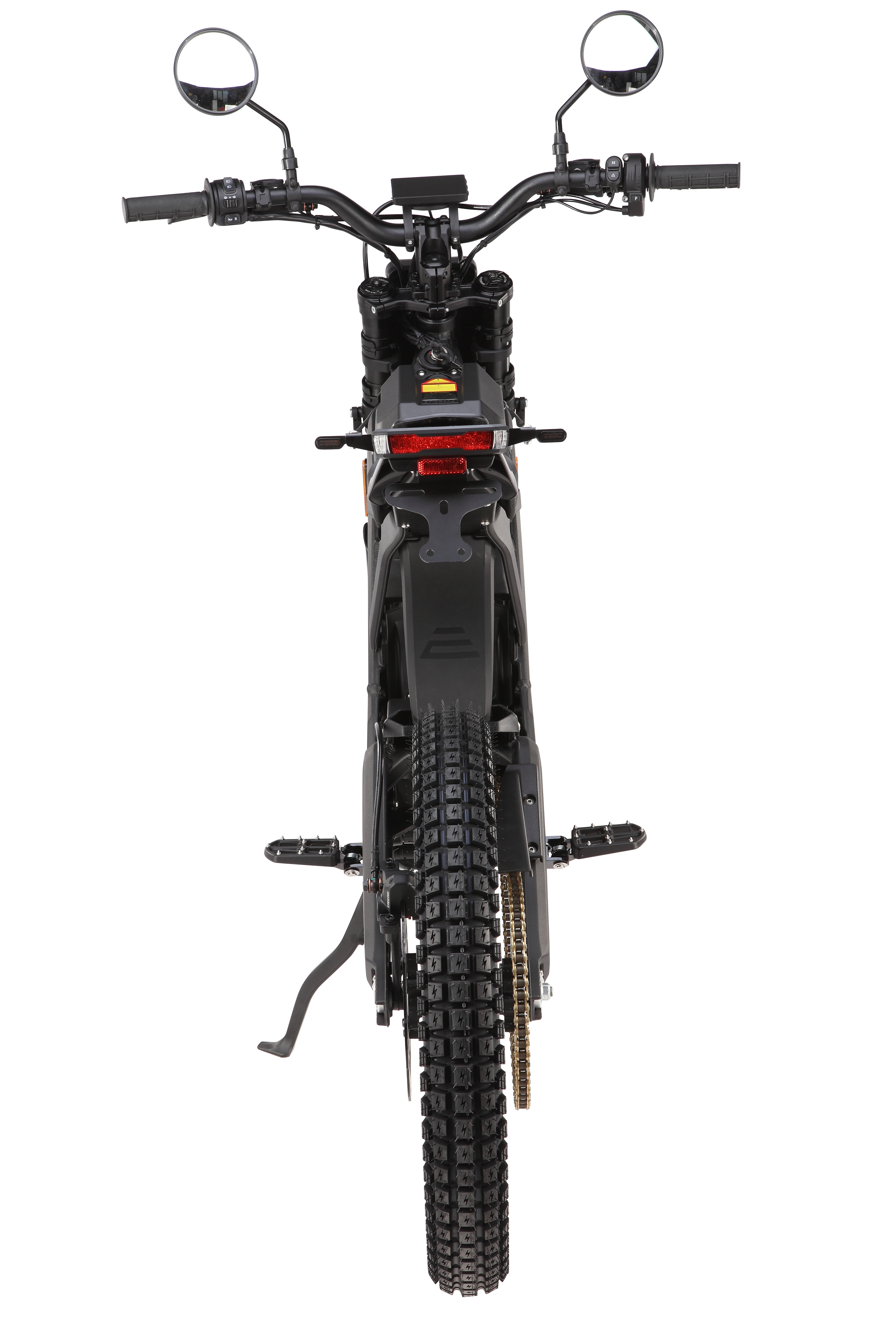

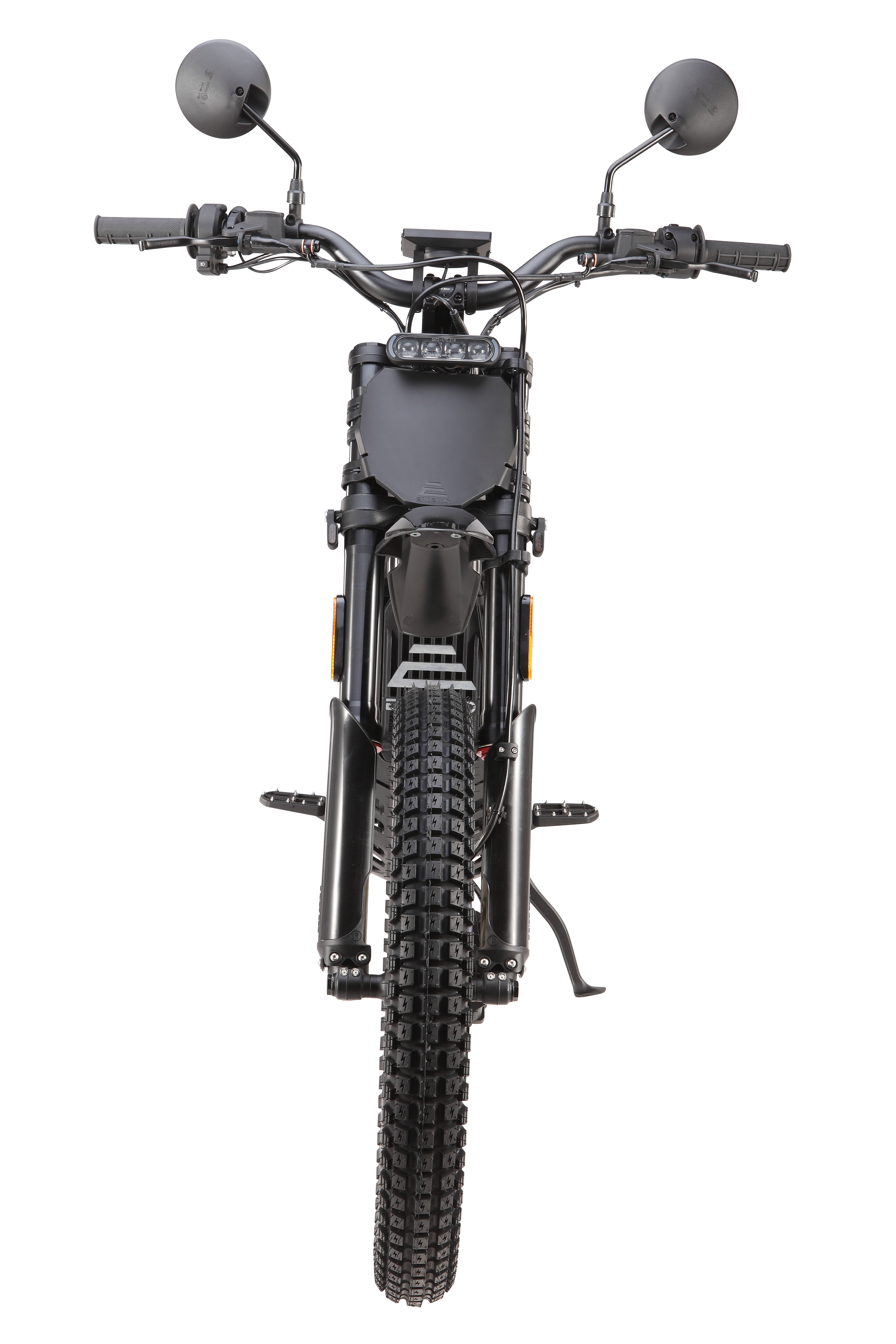

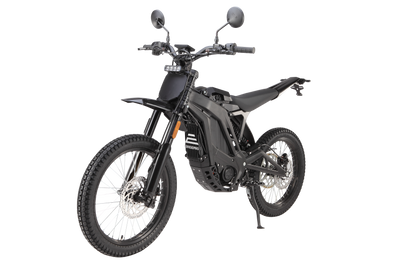

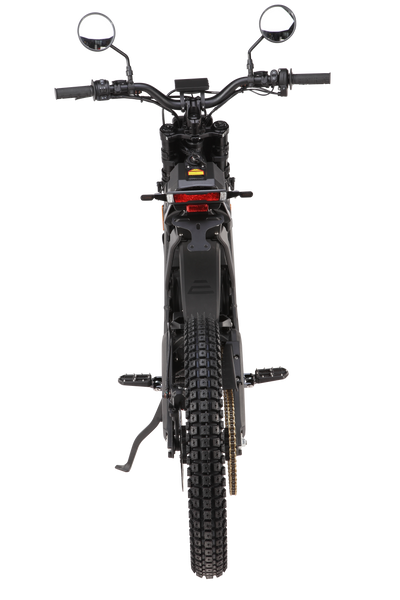

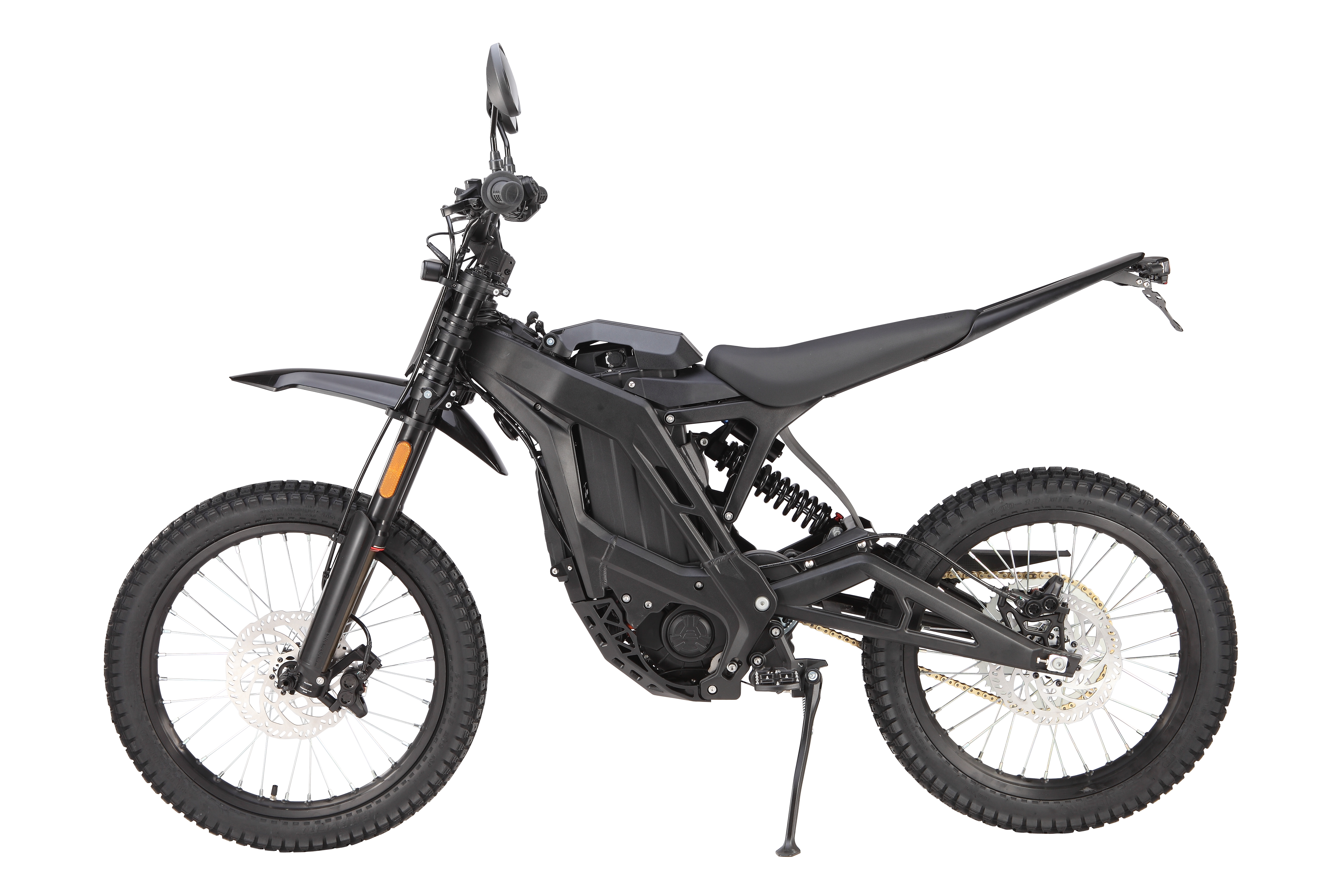

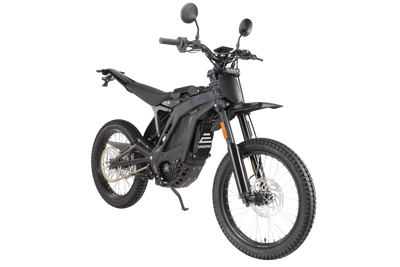

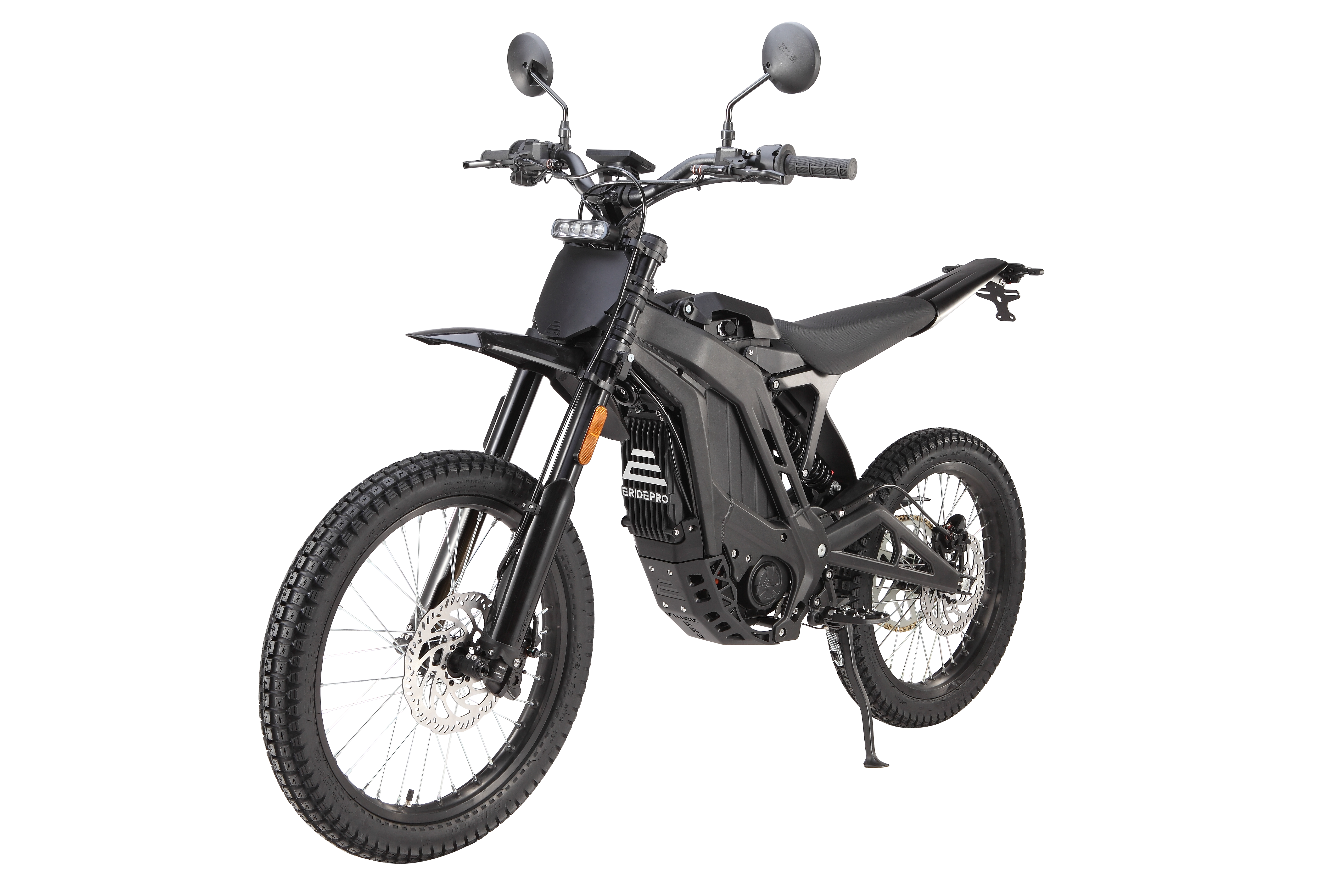

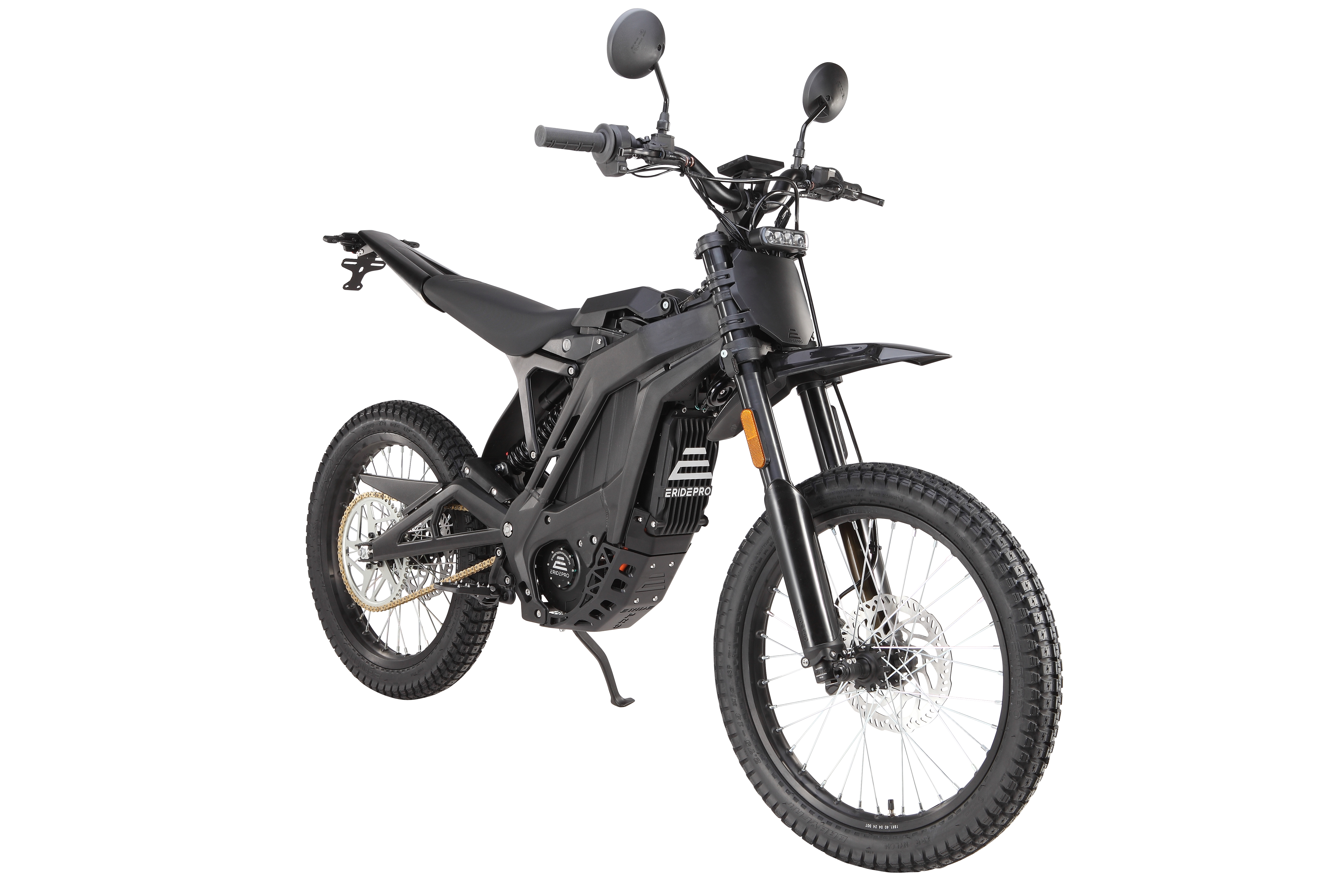

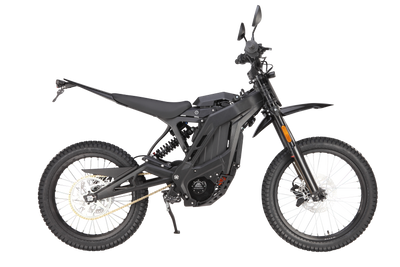

ERidePro SS 3.0 L1e/L3e

ERidePro SS 3.0

The 3.0 ignites the next level and offers
improved brakes, a larger battery, more power, and many
other improvements.

• Handlebar height: 106cm
• Overall length: 188cm
• Wheelbase: 128cm
• Handlebar width: 80 cm
• Seat height: 86 cm
• Weight (without battery): 47 KG
• Weight (incl. battery): 75 KG
• Max. payload: 100 KG
• Range: up to 160 KM
• Max. speed: 45 km/h (unrestricted for off-road use up to 100
km/h)
• Maximum motor power: 15.8 kW
• Front wheel rim: 1.4×19" Tire: 2.75-19"
• Rear wheel rim: 1.85×18" Tire: 3.00-18"
• Tire dimensions: Front: 80/100-19 Rear: 100/90-18
• Hydraulic disc brake: ⌀220mm brake discs and DOT
brake fluid (motorcycle standard)
• Recuperation: possible & adjustable
• Suspension FASTACE - developed for E Ride Pro, double bridge front
• Rear coil spring shock absorber: 210mm travel, compression-rebound adjustable
• Charging time: 3.5 hours (0%-100%)
• Battery: 72 V x 50 Ah = 3,600 Wh
